Basic Vericut Product Installation

Run the setup.exe from the folder containing the downloaded installer.

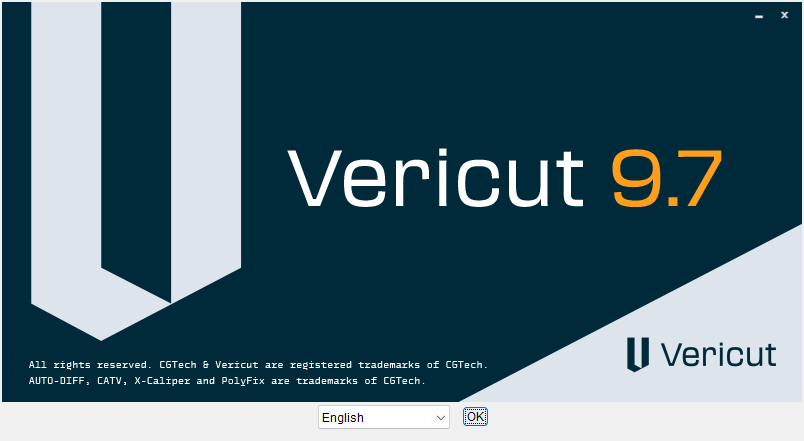

Select the desired language from the dropdown list at the bottom and click on the OK button.

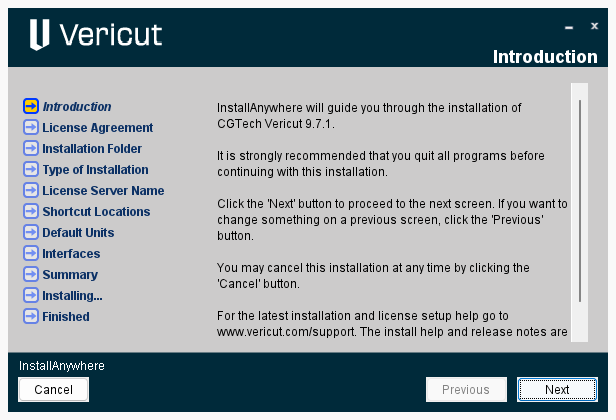

The Introduction page will be displayed. Click the “Next” button to continue.

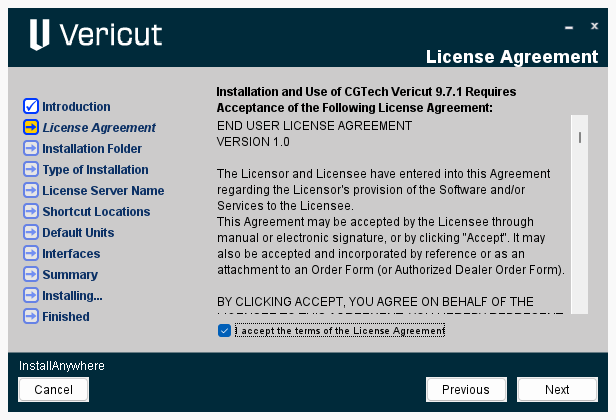

The license agreement page will then be displayed. Read the license agreement. If you agree, select the “I accept the terms and conditions” Click the “Next” button to continue.

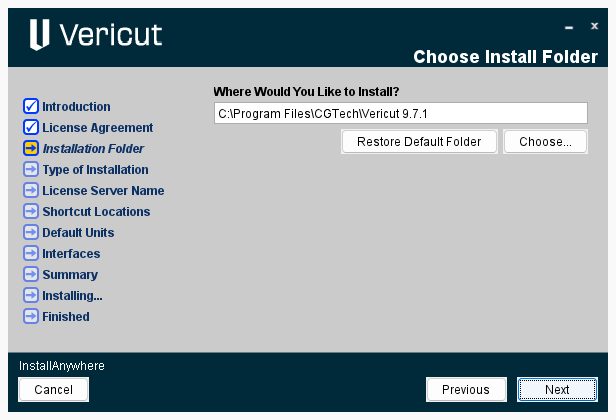

The folder location will then be displayed. Accept the default location or browse for a different location. When you’re satisfied with the location, click the “Next” button to continue.

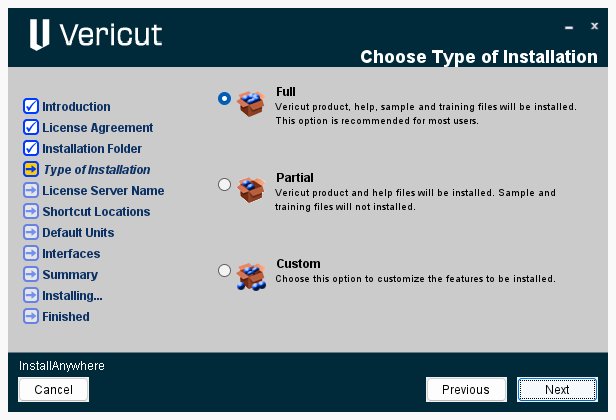

Chose your installation:

  • Full installs the product, license server, help, samples and training files. This is the recommended setting.

  • Partial installs the product, license server and help files.

  • Custom allows you individually to choose which items get installed.



If you’ve chosen the Custom option the next screen will allow you to select which components of the product to install. Make your selections and click the “Next” button to continue.

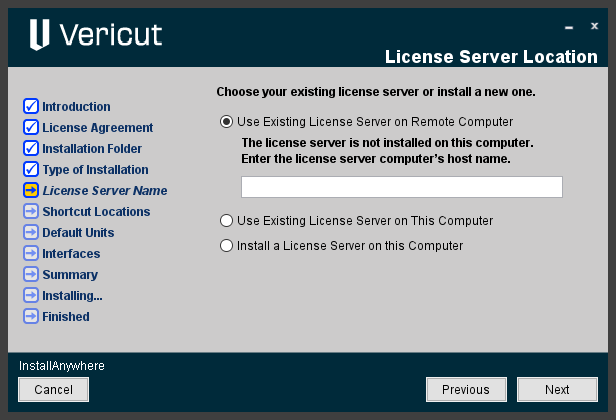

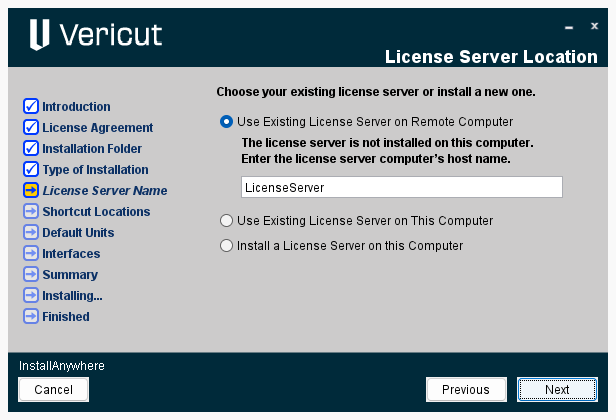

Choose which license server to access.

  • Use Existing License server on Remote Computer.

  • Use Existing License server on This Computer

  • Install a License Server on this Computer. (📝 NOTE: installing new license server requires administrative privileges)

Click the “Next” button to continue.

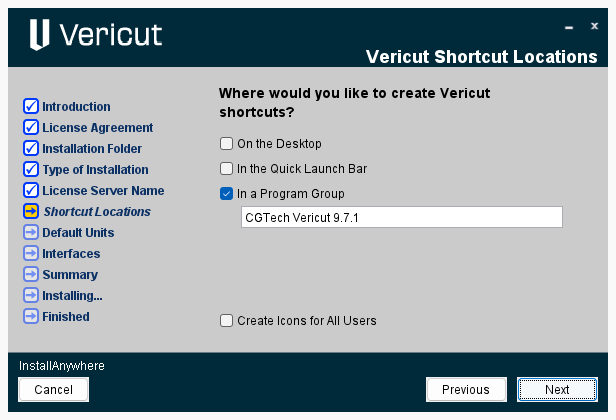

Shortcut Locations Choose where you want you shorts to be located. On the Desktop, in your Quick Launch bar or in a program group in your start menu. You may select as many of these option as you want.

📝 NOTE: It is recommended that you always keep the program group as a selection. The group in the start menu will contain several utilities that you may wish to access later on. Click the “Next” button to continue.

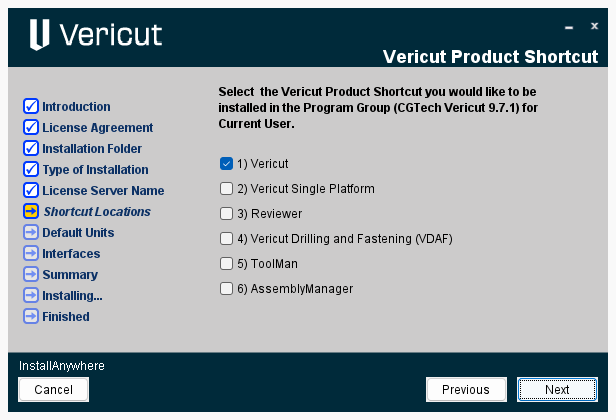

Vericut Product Shortcuts Select which product(s) you which to install and create shortcuts for. Make sure you know which products you purchased prior to making your selection. Click the “Next” button to continue.

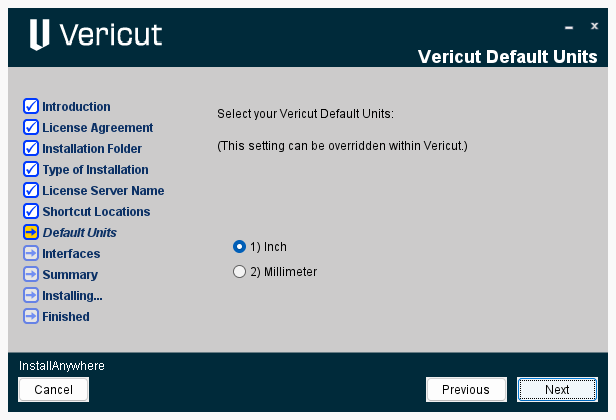

Defaults Units Choose the default units to use when opening Vericut. During normal Vericut operation, the units can also be selected when starting a new project. Once a unit has been selected it’s saved with the project file. Click the “Next” button to continue.

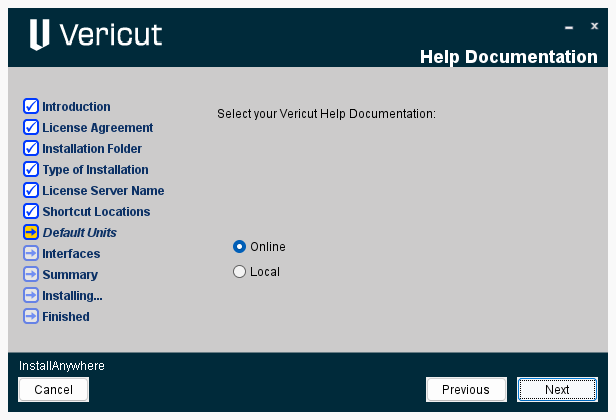

Select which Help Documentation you would prefer: Online or Local. Click the “Next” button to continue.

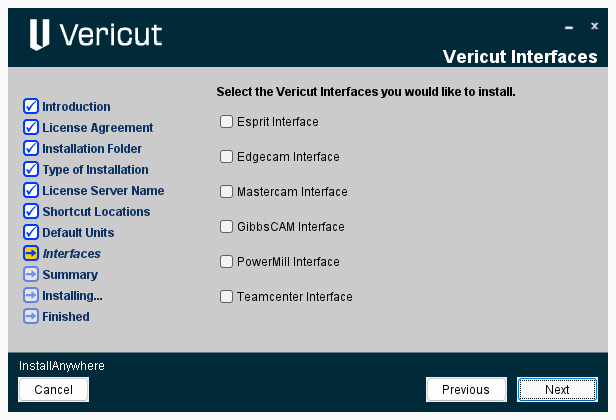

Select Additional interfaces. If you purchased additional interfaces in the list, select them to have them installed.

📝 NOTE: there may be more options available than this image depicts. Click the “Next” button to continue.

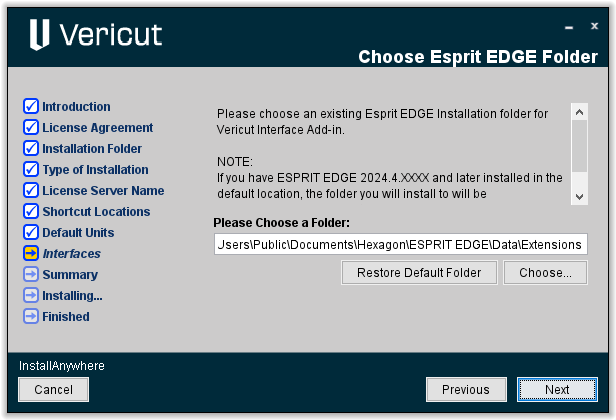

If you selected the Esprit interface you will be prompted for the location of the Esprit installation. If it’s not the default installation listed then click on the “Choose” button to locate the Esprit installation.

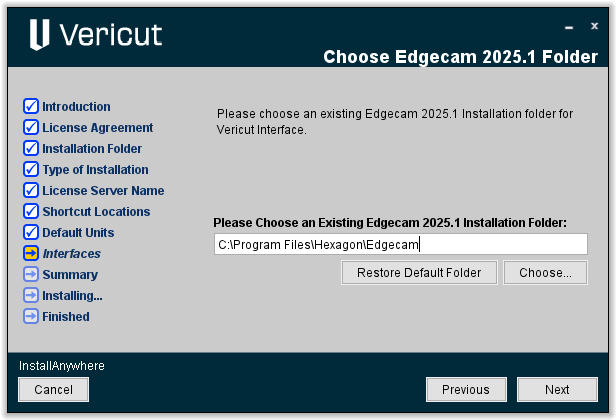

If you selected the EdgeCam interface you’ll be prompted to select the installation directory.

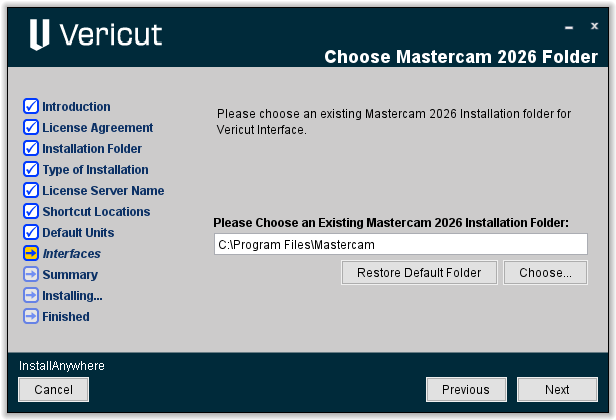

If you selected the Mastercam interface you’ll be prompted to select the installation directory.

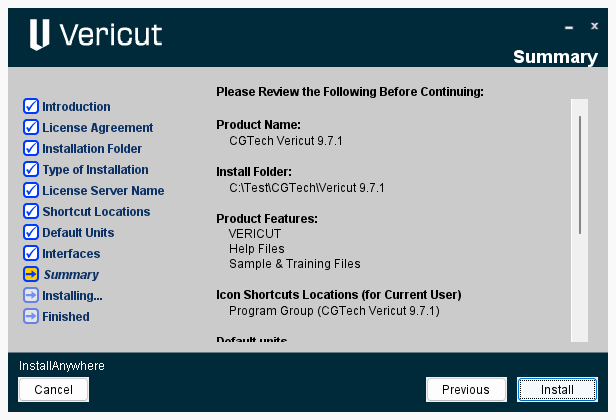

The Summary page will then be displayed. Review your choices. If you need to go back and make any changes click on the “Previous” button to return to the topic that needs a correction. Clicking the “Install” button will begin the installation process.

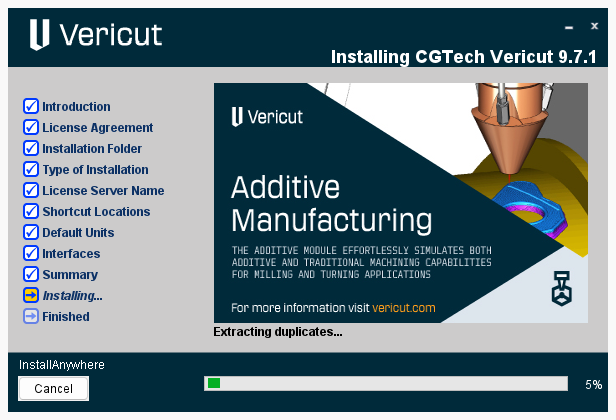

The installation progress screen will be displayed during the installation.



Once the installation is completed a window will be displayed asking if you would like to view the post-installation instructions. This will launch your browser and provide a link to take you to the Vericut website to the on-line post-installation instructions. If you wish to install a license server on this PC then check the box and click next.

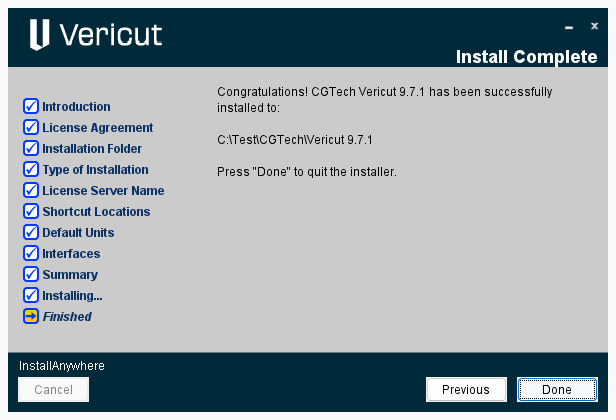

Click the “Done” button to exit the Installer.

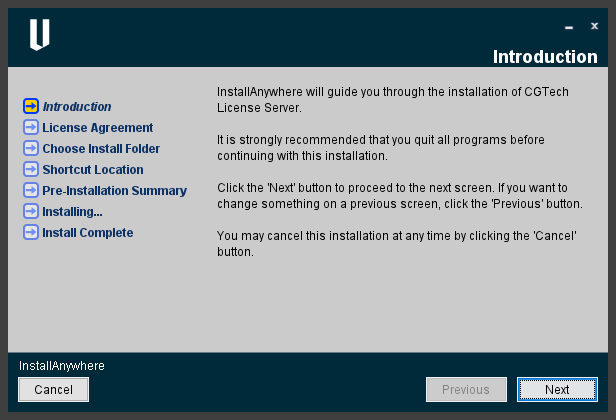

If you opted to install the license server, click next to continue.

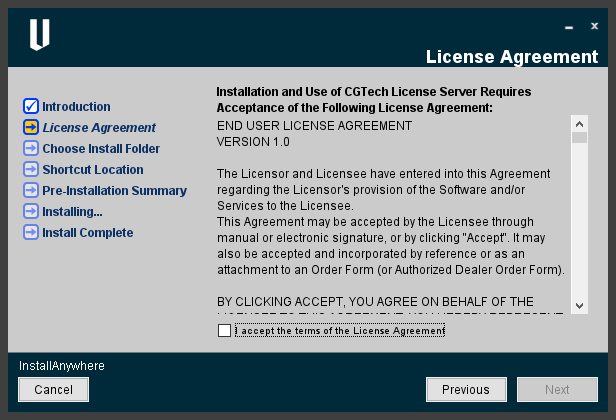

Click on the accept button and then click next to continue.

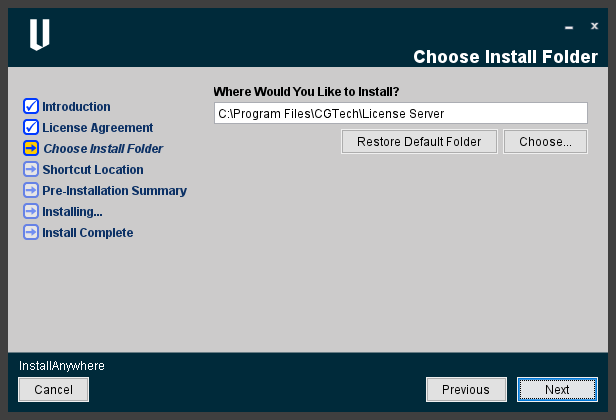

Choose a new location or click next to accept the default location to continue.

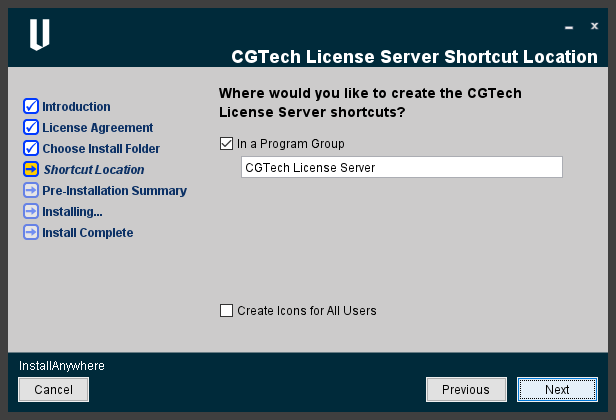

Check the program group option (recommended) to create a program group in the start menu. This group contains additional utilities for configuring the license server as shown on the next page.



This picture shows the additional utilities available when available using the program group option.

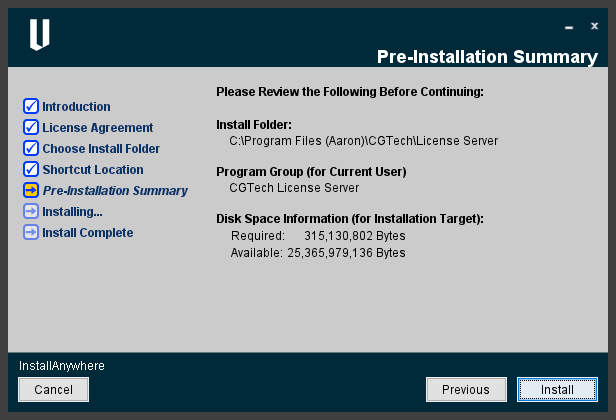

The pre-installation page is now displayed. Examine the install options selected. If necessary, click the previous button to go back and change any options otherwise click next to continue the installation. Click Done when the installation is completed.
