Attach Component Branch¶
Right click on an Attach Component branch in the Project Tree panel to display one of the following menus. The menu that displays depends on whether the Show Machine Components feature is toggled “on” or “off”.
Show Machine Components toggled “off”
Paste — Use to paste the contents of the paste buffer to the Attach Component.
Append — Use to connect the selected component to the Attach Component (ref. Component Type in the Configuration Component menu, Component tab section for complete list of component types). Hold the cursor over the
at the bottom of the components list to view additional components.
Expand All Children — Expands all branches below the Attach Component.
Expand Components — Expands all child branches of the selected (highlighted) component.
Collapse All Children — Collapses all branches below the Attach Component.

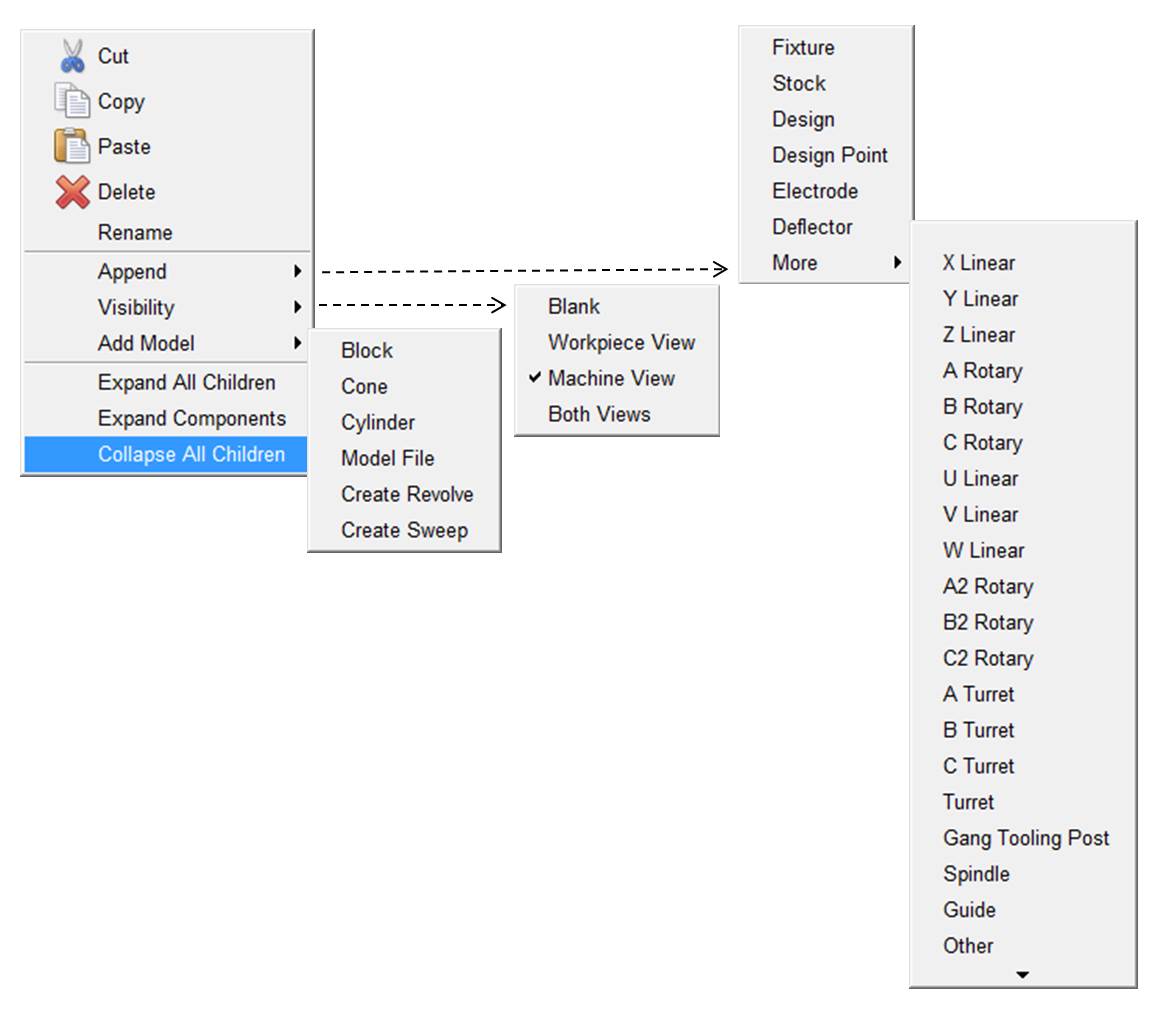

Show Machine Components toggled “on”
Cut — Cuts the highlighted Attach Component branch from the Project Tree and puts it in the paste buffer.
Copy — Copies the highlighted Attach Component branch to the paste buffer.
Paste — Use to paste the contents of the paste buffer to the Project Tree.
Delete — Deletes the highlighted Attach Component branch from the Project Tree.
Rename — Use to rename the highlighted Attach Component.
Append — Use to connect the selected component to the Attach Component (ref. Component Type in the Configuration Component menu, Component tab section for complete list of component types). Hold the cursor over the at the bottom of the components list to view additional components.
Visibility — Use the Visibility features to specify whether or not the Attach Component branch is visible, and in what views. A check indicates “visible” in the view.
-
Blank — The highlighted Attach Component branch is not visible in any view. When Visibility is set to "Blank" for a component, the icon representing the component in the Project Tree will be displayed in gray instead if a color.
-
Workpiece View — The highlighted component branch is only visible in a Workpiece View.
-
Machine View — The highlighted Attach Component branch is only visible in a Machine View.
-
Both — The highlighted Attach Component branch is visible in any view.
Add Model — The Add Model pull-down list contains the model types that can be added to an Attach Component. Select from the listed model types (ref. Model Type in the Configure Component menu, Common Features section for complete information on each model type).
Expand All Children — Expands all branches below the Attach Component.
Expand Components — Expands all child branches of the selected (highlighted) component.
Collapse All Children — Collapses all branches below the Attach Component.
If the Configure icon is toggled “on”, the Configure Component menu displays at the bottom of the Project Tree.
