Setup Branch

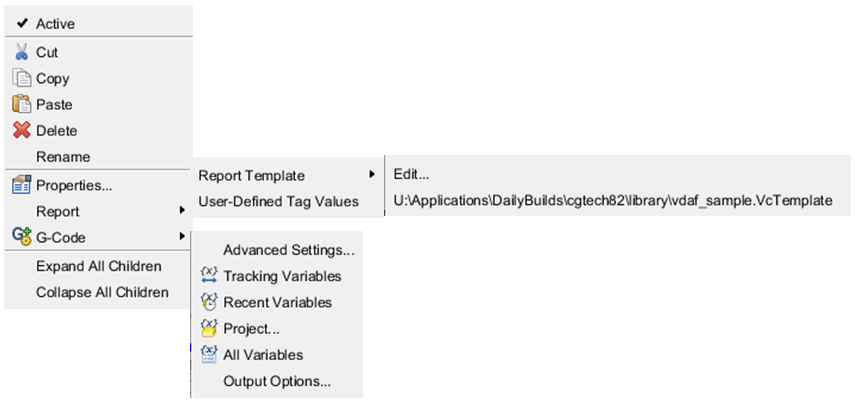

Right-click on a Setup branch in the Project Tree panel to display the following menu:



Active — Use to designate whether the setup is "active", or "inactive". (ref. Active/Inactive Setup in the Introduction to the Project Tree section.

  • Cut — Cuts the highlighted setup in the Project Tree and puts it in the paste buffer.

  • Copy — Copies the highlighted setup in the Project Tree to the paste buffer.

  • Paste — Puts the contents of the paste buffer after the highlighted setup in the Project Tree.

  • Delete — Deletes the highlighted setup from the Project Tree.

  • Rename — Use to rename the highlighted setup.

Properties — Opens the Settings window: Properties tab (Project tab > Settings) enabling you to set properties for the verification session, such as: cut mode, resolution and tolerance values that affect form display, accuracy, and motion simulation.

Report >

  • Report Template > Edit — Opens the Report Template window enabling you to define a new, or modify an existing, report template.

  • User-Defined Tag Values — Opens the User-Defined Tag Values window enabling you to assign job specific information to "generic" User-Defined Tags.

G-Code >

  • Advanced Settings — Opens the Settings window: G-Code Advanced tab enabling you to configure settings to support processing G-Code NC program files.

  • Tracking Variables — Opens the Tracking Variables panel enabling you to select variables to be tracked and delete variables from being tracked.

  • Recent Variables — Opens the Recent Variables panel enabling you to create, add, and delete variables that are specific to the project file and are stored in the project file.

  • Project Variables — Opens the Project Variables panel enabling you to create, add, and delete variables that are specific to the project file and are stored in the project file.

  • All Variables — Opens the All Variables panel enabling you to select the types of variables that are displayed and the information that is displayed for the variables.

  • Output Options — Opens the Settings window: G-Code Outputs tab enabling you to configure the settings required to support processing of G-Code NC program files.

Expand all Children — Expands all branches of a Setup branch.

Expand Components — Expands all child branches of the selected (highlighted) component.

Collapse all Children — Collapses all branches of a Setup branch.

If the Project Tree > Configure icon is toggled “on”, the Configure Setup menu displays at the bottom of the Project Tree.
